Tube Installation Tool
ST Series Serrating Tool
- High Production Tool.
- Ideal for use where 1 Tool is needed
per Bore. - One piece cryogenically treated tool
bit ensures maximum life. - Tool is ideally suited for CNC
application. - Bore Range: 3/8” to 2.1/2”

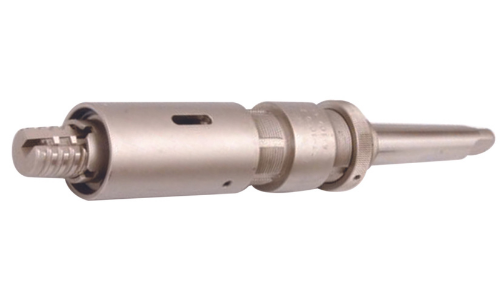

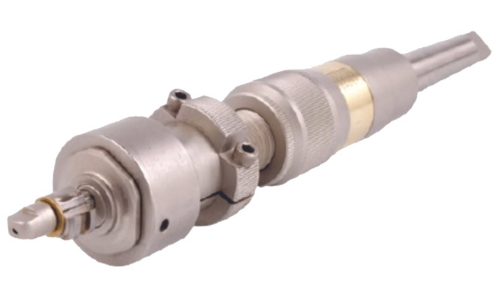

NW Series Serrating Tool
- Changing of pilot nose & cutter
allows one tool to cover a range of
hole diameter - Location and depth of cut easy to
adjust - Only light pressure is required to
cut precision grooves - Ready to fit CNC, Lathes & Boring
machines - Bore Range: 3/8” to 4”
SGT Series Serrating Tool
- Light pressure is required to cut
precision grooves inside Holes or
cylinders - Location & Depth of groove easy to
adjust - Changing of bushing and cutter
allows one tool to cover a range of
hole diameters. - Bore Range: 0.4” to 3.07”

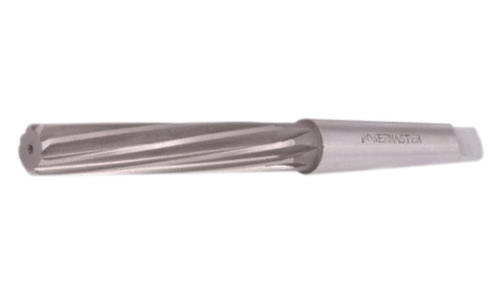

Tube Sheet Hole Reamer
- High-Speed Steel, Cryogenically
treated & Coated With Titanium
Nitride for long life. - Ideal for heat exchanger &
condenser tube sheet reaming. - Reamers available in MM sizes also.
- Bore Range: 3/8” to 1/4”

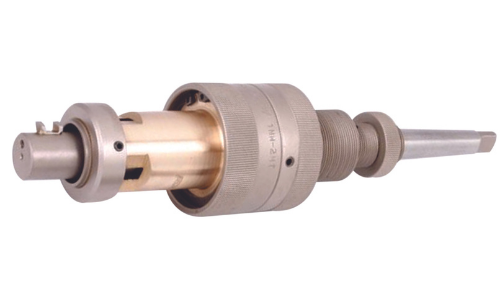

TEF Series Tube End Facer
- Ideal for quick facing of projecting
tube ends - Suitable for Heat exchangers,
condensers and Boilers - One Size of tool is Suitable for
multiple tube thickness by
interchanging pilot - Each tool is supplied with a set of
multiple pilot to cover all tube
thickness - Tube Range: 3/8” to 2.1/2”

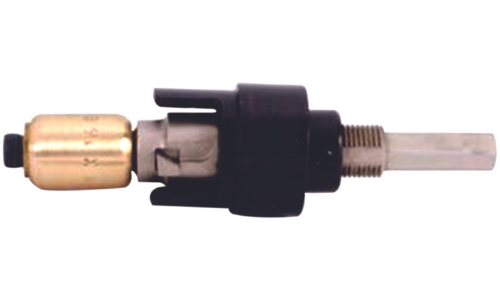

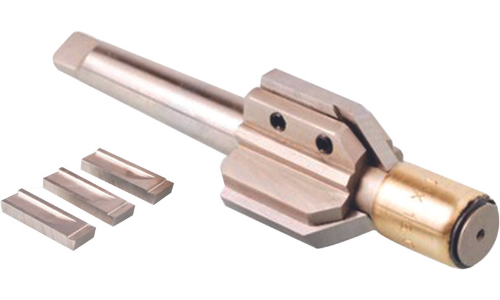

FC Series Weld Removal Tool
- Tool uses 3 cutting blades which
can be used for tube end facing or
weld removal - Tool fitted with MT shank for use
with standard air or electric drills - Ideally suited for work on larger
diameter boiler tubes. - Tube Range 1.1/2” to 4”

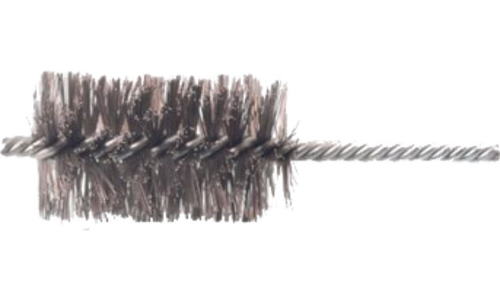

Tube sheet Hole Brush
- To Clean tube sheet bores, prior to
tube installation - It can be used with any standard
pneumatic or electric drill - Tube Range: 3/8” to 4”

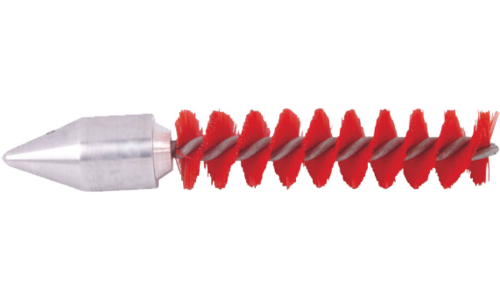

Tube Guide
- To pilot the tubes through the
tubes sheet and baffles - Rate of insertion is faster with
Tube Guide - It prevents damage of Tube ends
- Tube Range: 1/2” to 1.1/4”

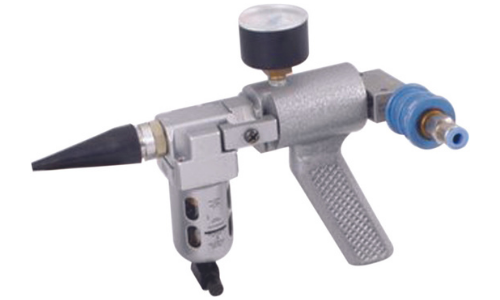

Tube Leak Detector Test kit
- PVLD-3000 is a very quick easy &
precise method of testing damage
or leaky tube - It can be used in Heat exchanger,
Condenser & Boiler - It is very Economical & fast method
compare to hydro test - Tube capacity 1/4” to 3”

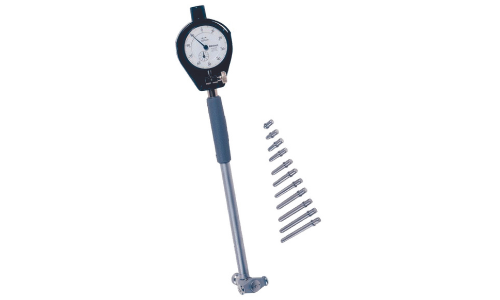

Bore Gauge
- Supplied with set of
interchangeable carbide tipped
anvils - Dial indicator is fully protected by
rugged cover - Unique self centering device
- Special type extra long bore gauge
is also available - Tube Range: 6 mm to 800 mm
